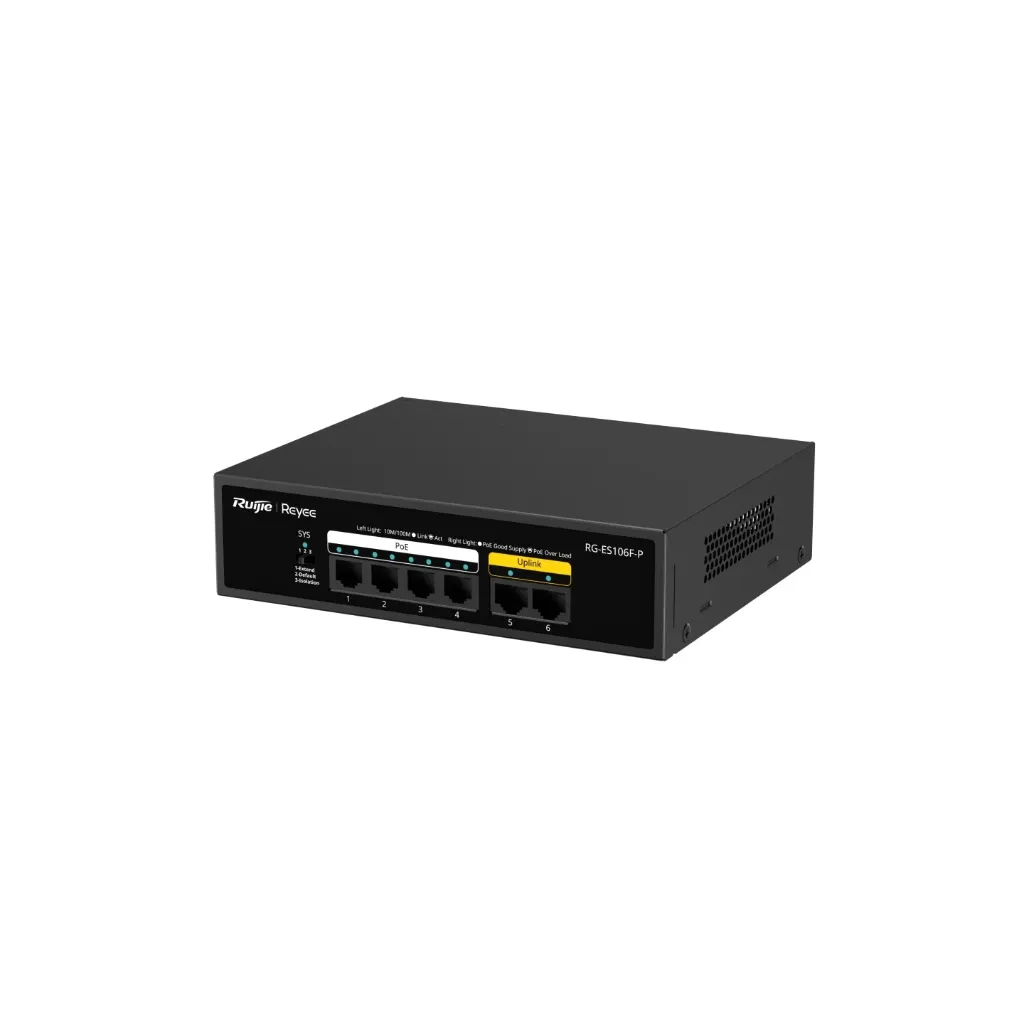

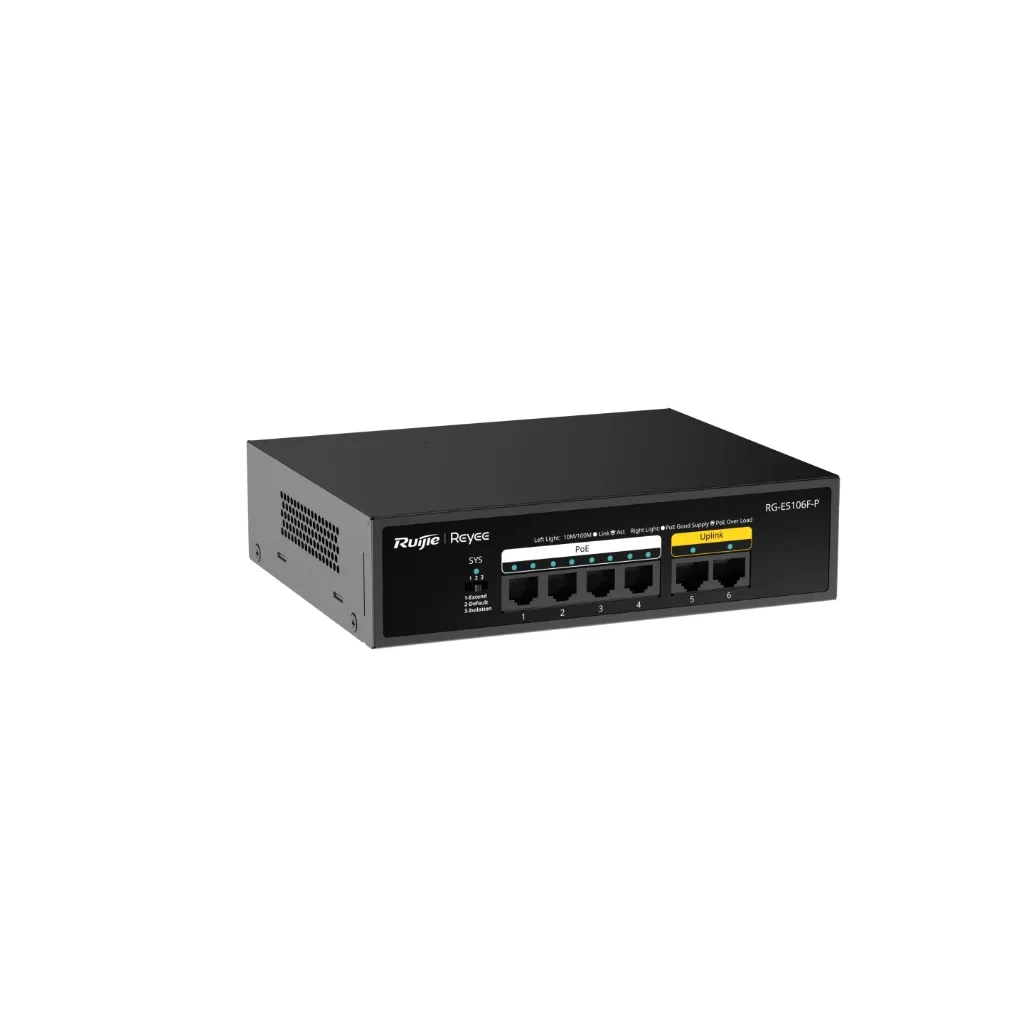

Ruijie Reyee RG-ES106F-P

Name: Ruijie Reyee RG-ES106F-P
Price: 67.0 AUD

The Ruijie Reyee RG-ES106F-P is a compact 6-port unmanaged PoE+ switch featuring 4 Fast Ethernet PoE+ ports and 2 uplink ports, making it ideal for IP cameras, wireless access points, and small surveillance deployments. With a 54 W PoE budget and support for IEEE 802.3af/at, it provides reliable power and data connectivity over a single Ethernet cable. Designed for easy deployment, the RG-ES106F-P includes Extend Mode for transmission distances up to 200 metres, Isolation Mode for improved network security, and a durable fanless metal chassis for silent operation. Its compact size, wall or desktop mounting options, and built-in surge protection make it a dependable choice for small business and CCTV installations.

$ 67.00

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Description

Category	Specification	Details
Model	Model Number	RG-ES106F-P
Product Information	Warranty	3 Years
Port Specifications	Total RJ45 Ports	6
	10/100BASE-T Ports	6
	Ultra-Long-Haul Transmission	Yes
	DIP Switch Modes	Default Mode: All ports communicate, flow control enabled. Extend Mode: Ports 1-4 operate at 10 Mbps with transmission distances up to 200 m (Cat5e cable required). Isolation Mode: Ports 1-4 are isolated from each other but can communicate with Ports 5-6.
PoE Specifications	PoE Standard	PoE / PoE+ (IEEE 802.3af/at)
	Number of PoE Ports	4
	Number of PoE/PoE+ Ports	4
	PoE Budget	54 W
	PoE Power Pins	1–2 (+), 3–6 (-)
Power Supply & Consumption	Power Input	Built-in 220 V AC Power Supply
	Rated Input Voltage	100–240 V AC, 50–60 Hz
	Maximum Input Voltage	90–264 V AC, 47–63 Hz
	Rated Input Current	2 A
	Maximum Power Consumption (No PoE Load)	6 W
	Maximum Power Consumption (Full PoE Load)	60 W
	Power Supply Type	Fixed Power Supply
System Specifications	Flash Memory	2 MB
	Forwarding Rate	0.9 Mpps
	Switching Capacity	1.2 Gbps
Dimensions & Weight	Casing	Metal
	Product Dimensions (W × D × H)	166 × 132.6 × 43 mm (6.54 × 5.22 × 1.69 in.)
	Weight	0.65 kg (1.43 lbs) without packaging
	Shipping Weight	0.96 kg (2.12 lbs)
Environment & Reliability	Fan	Fanless Design
	Cooling	Natural Cooling
	Mounting Options	Wall / Desk
	Hot Swapping of Cables	Supported by the service port and power connector
	MTBF	200,000 Hours
	Operating Temperature	0°C to 45°C (32°F to 113°F)
	Storage Temperature	-40°C to +70°C (-40°F to +158°F)
	Operating Humidity	10% RH to 90% RH (non-condensing)
	Storage Humidity	5% RH to 95% RH (non-condensing)
	Altitude	-500 m to +5,000 m (-1,640.42 ft to +16,404.20 ft)
Protection	ESD Protection (Air Discharge)	8 kV
	ESD Protection (Contact Discharge)	6 kV
	Surge Protection – Service Port	±4 kV (Common Mode)
	Surge Protection – Power Connector	±6 kV (Common Mode), ±6 kV (Differential Mode)
