Ruijie Reyee RG-ES110F-P

Name: Ruijie Reyee RG-ES110F-P
Price: 105.0 AUD

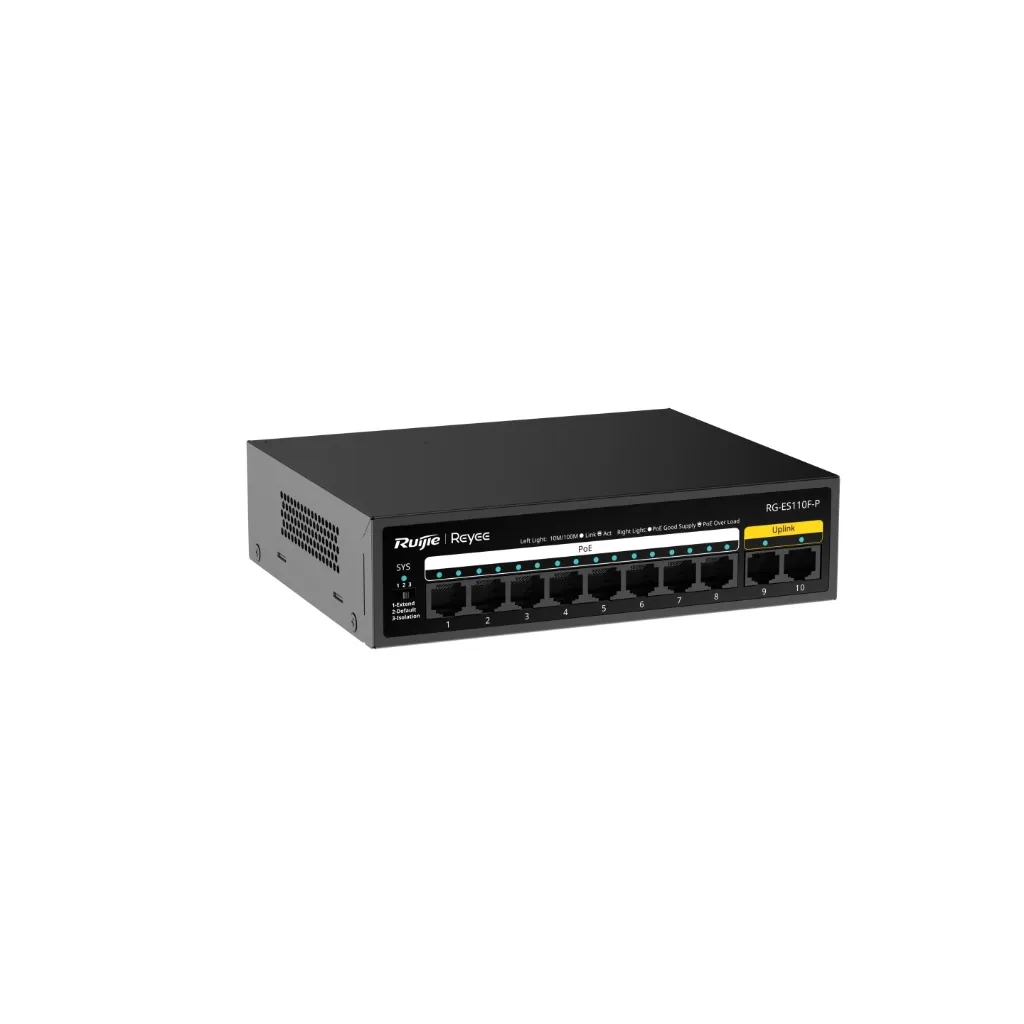

The Ruijie Reyee RG-ES110F-P is a 10-port unmanaged PoE+ switch featuring 8 Fast Ethernet PoE+ ports and 2 uplink ports, making it ideal for IP surveillance systems, wireless access points, and small business networks. With a 110W PoE budget and support for IEEE 802.3af/at, it delivers reliable power and data connectivity over a single Ethernet cable. The switch includes Extend Mode for transmission distances up to 200 metres and Isolation Mode to improve network security in surveillance deployments. Housed in a durable fanless metal chassis, the RG-ES110F-P provides silent operation, easy plug-and-play installation, and dependable performance for CCTV and edge networking applications.

$ 105.00

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Description

Category	Specification	Details
Model	Model Number	RG-ES110F-P
Product Information	Warranty	3 Years
Port Specifications	Total RJ45 Ports	10
	10/100BASE-T Ports	10
	Ultra-Long-Haul Transmission	Yes
	DIP Switch Modes	Default Mode: All ports communicate, flow control enabled. Extend Mode: Ports 1-8 operate at 10 Mbps with transmission distances up to 200 m (Cat5e cable required). Isolation Mode: Ports 1-8 are isolated from each other but can communicate with Ports 9-10.
PoE Specifications	PoE Standard	PoE / PoE+ (IEEE 802.3af/at)
	Number of PoE Ports	8
	Number of PoE/PoE+ Ports	8
	PoE Budget	110 W
	PoE Power Pins	1–2 (+), 3–6 (-)

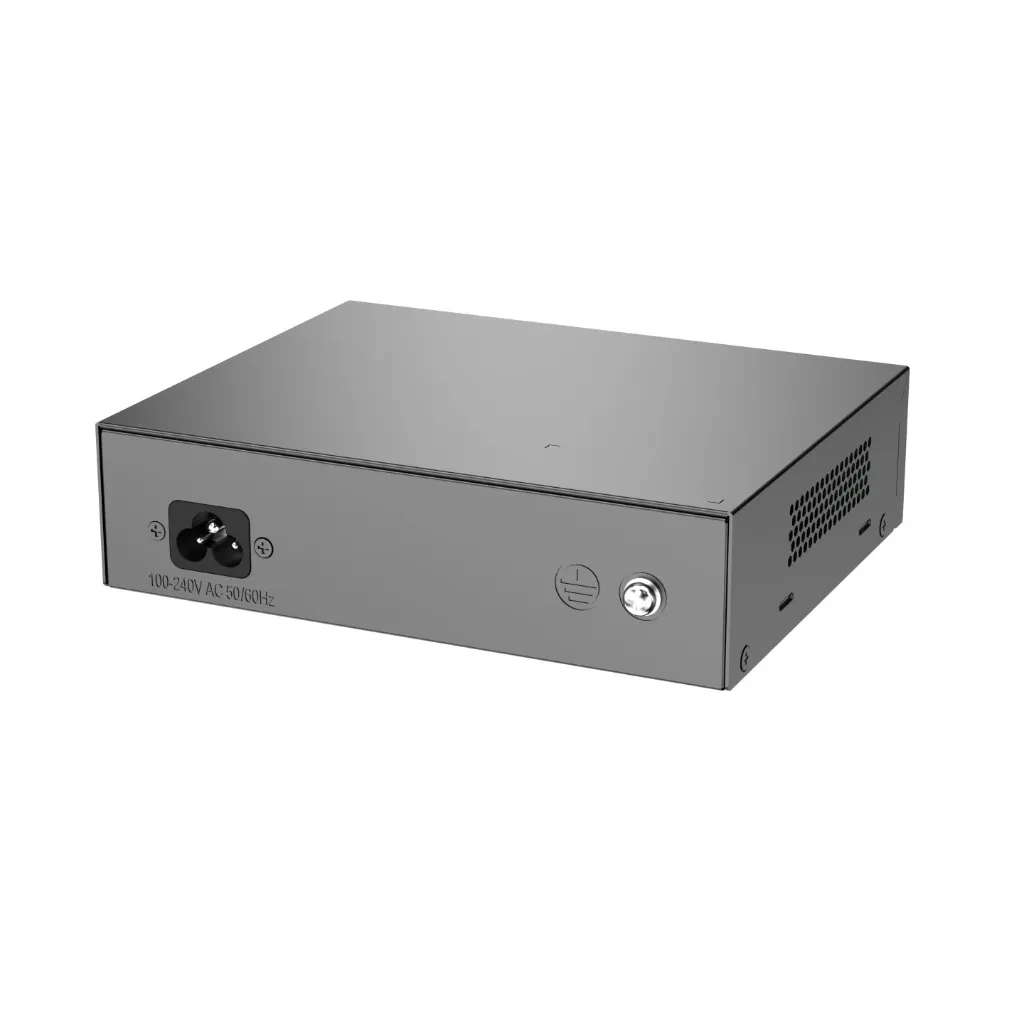

Power Supply & Consumption	Power Input	Built-in 220 V AC Power Supply
	Rated Input Voltage	100–240 V AC, 50–60 Hz
	Maximum Input Voltage	90–264 V AC, 47–63 Hz
	Rated Input Current	3 A
	Maximum Power Consumption (No PoE Load)	10 W
	Maximum Power Consumption (Full PoE Load)	120 W
	Power Supply Type	Fixed Power Supply
System Specifications	Flash Memory	2 MB
	Forwarding Rate	1.5 Mpps
	Switching Capacity	2 Gbps
Dimensions & Weight	Casing	Metal
	Product Dimensions (W × D × H)	166 × 132.6 × 43 mm (6.54 × 5.22 × 1.69 in.)
	Weight	0.97 kg (2.14 lbs) without packaging
	Shipping Weight	1.22 kg (2.69 lbs)
Environment & Reliability	Fan	Fanless Design
	Cooling	Natural Cooling
	Mounting Options	Wall / Desk
	Hot Swapping of Cables	Supported by the service port and power connector
	MTBF	200,000 Hours
	Operating Temperature	0°C to 45°C (32°F to 113°F)
	Storage Temperature	-40°C to +70°C (-40°F to +158°F)
	Operating Humidity	10% RH to 90% RH (non-condensing)
	Storage Humidity	5% RH to 95% RH (non-condensing)
	Altitude	-500 m to +5,000 m (-1,640.42 ft to +16,404.20 ft)
Protection	ESD Protection (Air Discharge)	8 kV
	ESD Protection (Contact Discharge)	6 kV
	Surge Protection – Service Port	±4 kV (Common Mode)
	Surge Protection – Power Connector	±6 kV (Common Mode), ±4 kV (Differential Mode)
