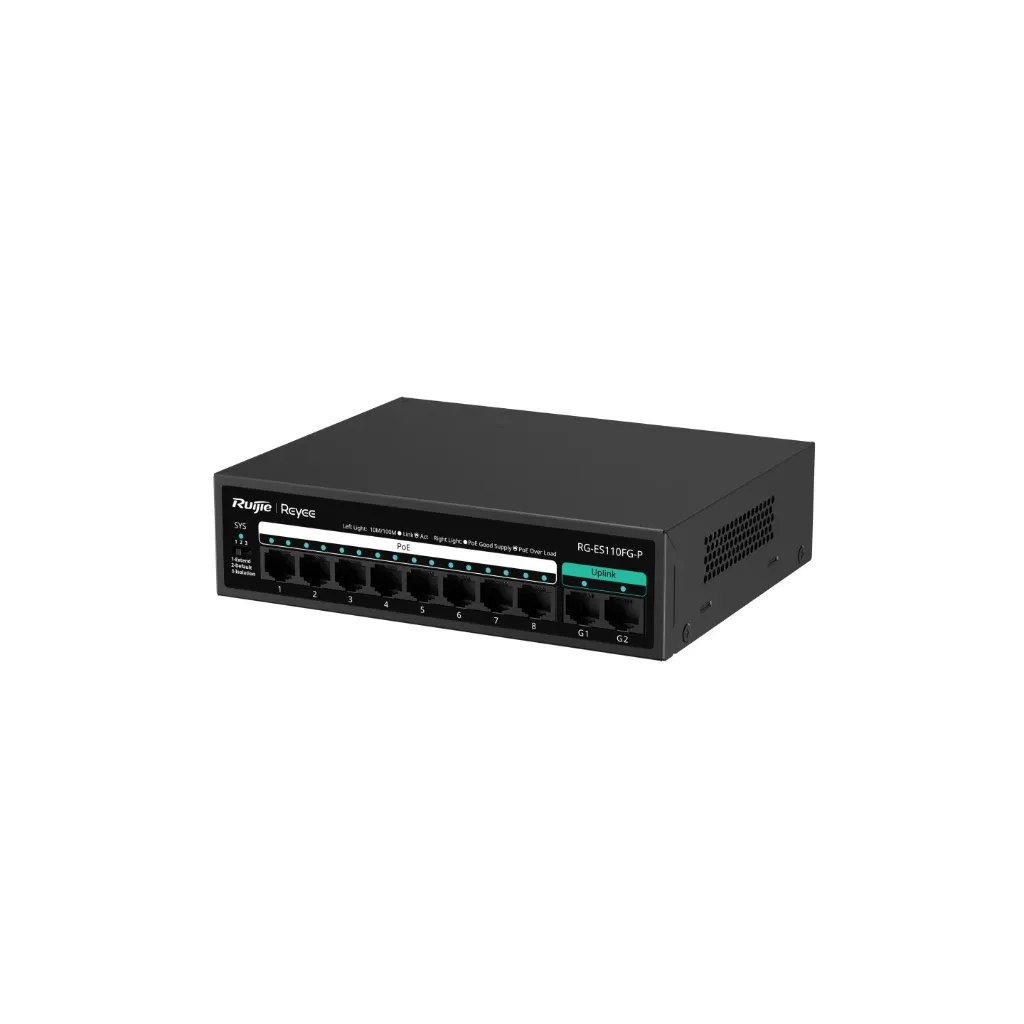

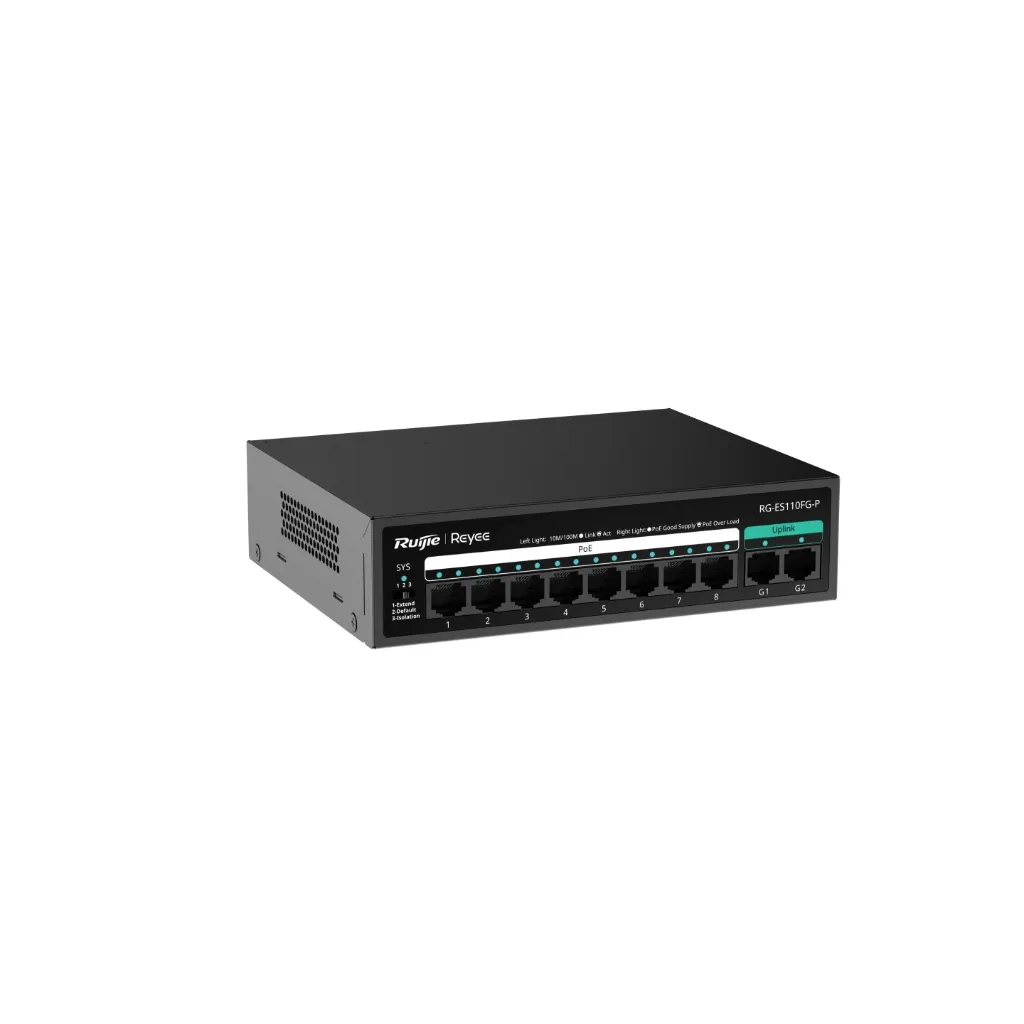

Ruijie Reyee RG-ES110FG-P

Name: Ruijie Reyee RG-ES110FG-P
Price: 157.0 AUD

The Ruijie Reyee RG-ES110FG-P is a 10-port unmanaged PoE+ switch featuring 8 Fast Ethernet PoE+ ports and 2 Gigabit uplink ports, making it ideal for IP surveillance systems, wireless access points, and small business networks. With a 110W PoE budget and support for IEEE 802.3af/at PoE, it delivers reliable power and data connectivity over a single Ethernet cable. The switch supports Extend Mode for transmission distances up to 200 metres and Isolation Mode for enhanced network security in CCTV deployments. Its durable metal chassis, fanless operation, and Gigabit uplink connectivity provide a reliable and cost-effective solution for powering and connecting network devices in commercial and surveillance environments.

$ 157.00

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Description

Category	Specification	Details
Model	Model Number	RG-ES110FG-P
Product Information	Warranty	3 Years
Port Specifications	Total RJ45 Ports	10
	10/100BASE-T PoE Ports	8
	10/100/1000BASE-T Uplink Ports	2
	Ultra-Long-Haul Transmission	Yes
	DIP Switch Modes	Default Mode: All ports communicate, flow control enabled. Extend Mode: Ports 1-8 operate at 10 Mbps with transmission distances up to 200 m (Cat5e cable required). Isolation Mode: Ports 1-8 are isolated from each other but can communicate with Gigabit ports G1 and G2.
PoE Specifications	PoE Standard	PoE / PoE+ (IEEE 802.3af/at)
	Number of PoE Ports	8
	Number of PoE/PoE+ Ports	8
	PoE Budget	110 W
	PoE Power Pins	1–2 (+), 3–6 (-)
Power Supply & Consumption	Power Input	Built-in 220 V AC Power Supply
	Rated Input Voltage	100–240 V AC, 50–60 Hz
	Maximum Input Voltage	90–264 V AC, 47–63 Hz
	Rated Input Current	3 A
	Maximum Power Consumption (No PoE Load)	10 W
	Maximum Power Consumption (Full PoE Load)	120 W
	Power Supply Type	Fixed Power Supply
System Specifications	Flash Memory	2 MB
	Forwarding Rate	4.1 Mpps
	Switching Capacity	5.6 Gbps
Dimensions & Weight	Casing	Metal
	Product Dimensions (W × D × H)	166 × 132.6 × 43 mm (6.54 × 5.22 × 1.69 in.)
	Weight	0.97 kg (2.14 lbs) without packaging
	Shipping Weight	1.22 kg (2.69 lbs)
Environment & Reliability	Fan	Fanless Design
	Cooling	Natural Cooling
	Mounting Options	Wall / Desk
	Hot Swapping of Cables	Supported by the service port and power connector
	MTBF	200,000 Hours
	Operating Temperature	0°C to 45°C (32°F to 113°F)
	Storage Temperature	-40°C to +70°C (-40°F to +158°F)
	Operating Humidity	10% RH to 90% RH (non-condensing)
	Storage Humidity	5% RH to 95% RH (non-condensing)
	Altitude	-500 m to +5,000 m (-1,640.42 ft to +16,404.20 ft)
Protection	ESD Protection (Air Discharge)	8 kV
	ESD Protection (Contact Discharge)	6 kV
	Surge Protection – Service Port	±4 kV (Common Mode)
	Surge Protection – Power Connector	±6 kV (Common Mode), ±4 kV (Differential Mode)
