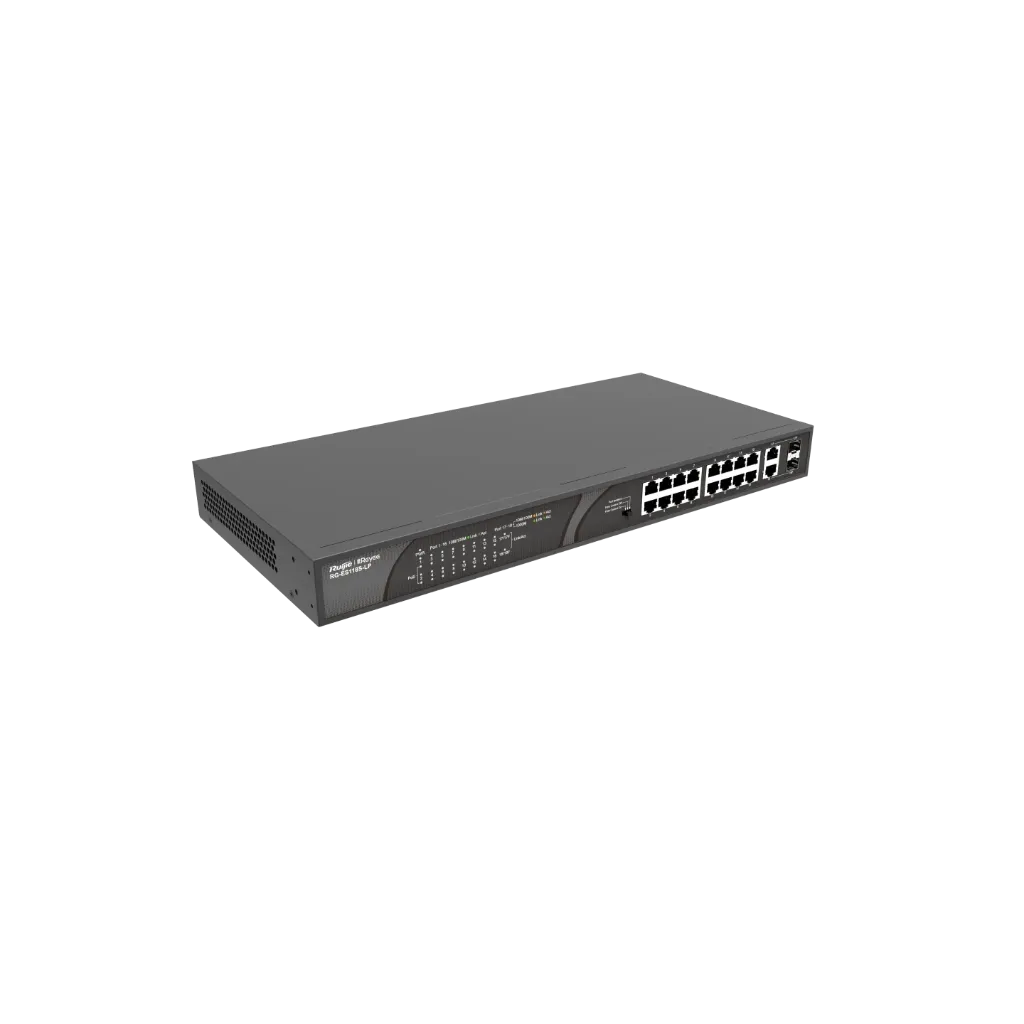

Ruijie Reyee RG-ES118S-LP

The Ruijie Reyee RG-ES118S-LP is an 18-port unmanaged PoE switch designed for IP surveillance, wireless networking, and small business deployments. It features 16 Fast Ethernet PoE+ ports, 2 Gigabit uplink ports, and 2 SFP combo ports, providing flexible connectivity for cameras, access points, VoIP phones, and other network devices. With a 120 W PoE budget and support for IEEE 802.3af/at PoE standards, the RG-ES118S-LP delivers both power and data over a single cable. Its rack-mount metal chassis, silent fanless design, and port isolation mode ensure reliable, secure, and low-maintenance operation. Backed by a 3-year warranty, it is an ideal solution for growing surveillance and network infrastructure deployments.

$ 1.00 $ 1.00
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Description

CategorySpecificationDetails
ModelModel NumberRG-ES118S-LP
Product InformationWarranty3 Years
Port SpecificationsTotal RJ45 Ports18


Total Optical Ports2


1GE Combo Ports2


1GE SFP Ports2


10/100BASE-T Ports16


10/100/1000BASE-T Ports2


DIP Switch Modes1. Flow Control On
2. Flow Control Off
3. Port Isolation
PoE SpecificationsPoE StandardPoE / PoE+ (IEEE 802.3af/at)


Number of PoE Ports16


Number of PoE/PoE+ Ports16


PoE Budget120 W


PoE Power Pins1–2 (+), 3–6 (-)
Power Supply & ConsumptionPower InputBuilt-in 220 V AC Power Supply


Rated Input Voltage100–240 V AC, 50–60 Hz


Maximum Input Voltage90–264 V AC, 47–63 Hz


Rated Input Current3 A


Maximum Power Consumption (No PoE Load)13 W


Maximum Power Consumption (Full PoE Load)148 W


Power Supply TypeSingle Fixed Power Supply
System SpecificationsFlash Memory1 MB


Forwarding Rate5.35 Mpps


Switching Capacity7.2 Gbps
Dimensions & WeightCasingMetal


Product Dimensions (W × D × H)440 × 208 × 44 mm (17.32 × 8.19 × 1.73 in.)


Weight2.32 kg (5.11 lbs) without packaging
Hardware SpecificationsShipping Weight3.50 kg (7.72 lbs)
Environment & ReliabilityFanFanless Design


CoolingNatural Cooling


Acoustic NoiseNone


Mounting OptionsRack Mount


Hot Swapping of CablesSupported by service port and power connector


MTBF200,000 Hours


Operating Temperature0°C to 45°C (32°F to 113°F)


Storage Temperature-40°C to +70°C (-40°F to +158°F)


Operating Humidity10% RH to 90% RH (non-condensing)


Storage Humidity5% RH to 95% RH (non-condensing)


Operating Altitude-500 m to +5,000 m (-1,640.42 ft to +16,404.20 ft)


Storage Altitude-500 m to +5,000 m (-1,640.42 ft to +16,404.20 ft)
ProtectionESD Protection (Air Discharge)8 kV


ESD Protection (Contact Discharge)6 kV


Surge Protection – Service Port±4 kV (Common Mode)


Surge Protection – Power Connector±6 kV (Common Mode), ±6 kV (Differential Mode)
